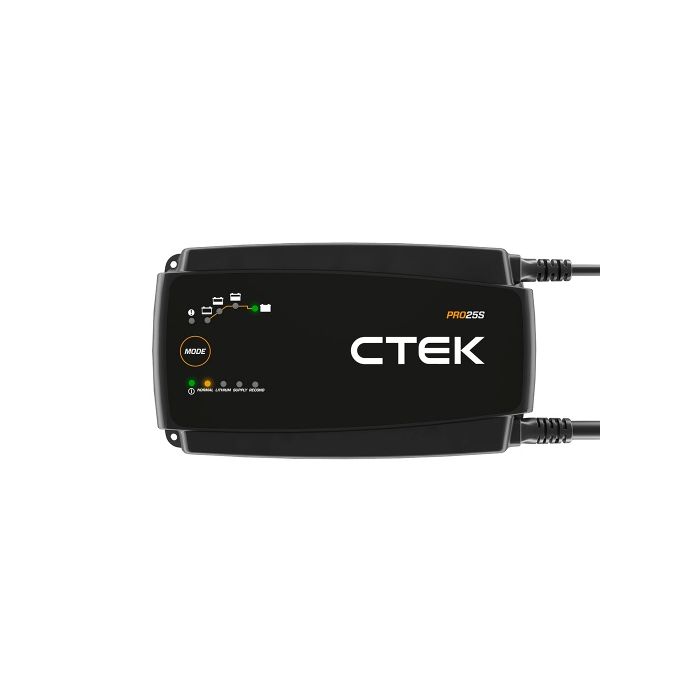

PRO25S

Highly efficient 25A battery charger, power supply & stabilizer

For everyday professional use

The PRO25S is an innovative, versatile and highly efficient 25A battery charger and power supply, designed around the needs of the automotive professional. Combining power & advanced technology with safety, portability and flexibility to work with any 12V vehicle battery including Lithium-Ion (LiFePO4), the PRO25S is the perfect solution to professional battery charging, in the workshop or the showroom.

Advanced technology will ensure that a safe, fast charge is delivered to exactly meet the needs of the individual battery. The PRO25S has a dedicated lead-acid battery reconditioning programme to restore battery life & recondition flat batteries. SUPPLY mode will support the battery during diagnostic or fault finding work. It has low voltage & current ripple, so it’s safe for the battery & the vehicle’s delicate electronic systems. Fully automatic & easy to use, it’s also very simple to connect, spark proof and reverse-polarity protected to protect the user & also the battery. The PRO25S is designed to ensure easy handling in both the workshop & the showroom. Whilst it’s lightweight & portable, the rugged, impact-resistant casing means it can also handle the toughest workshop environment.

• Dedicated Lithium-Ion (LiFeP04) mode
• Compatible with batteries from 40Ah to 500Ah (30Ah to 450Ah LiFePO4).
• SUPPLY mode to support the battery during diagnostic or fault-finding work.
• Fully automatic, easy to use and simple to connect
• Spark proof
• Reverse-polarity protected.
• Integrated safety features, so it’s safe for the battery & the vehicle.
• Built-in temperature sensor to achieve maximum charge levels
• Dedicated lead-acid reconditioning programme to restore battery life and recondition flat batteries.
• Lightweight & highly portable
• Tough & robust

Technical information
Ambient temperature; -20˚C to +50˚C
Positioning; Portable, Wall mounting (with special kit)
Warranty; 2 years
Input; 220–240VAC, 50–60Hz, 2.9A max
Output; 14.4V/15.8V/13.6V, 25A max, lead-acid battery types. 13.8V/14.4V/13.3V, 25A max, LiFePO4.
Start voltage; 2.0V
Back current drain*; Corresponding to less than 1Ah/month
Battery types; 12V:, WET, MF, Ca/Ca, AGM, EFB, GEL, LiFePO4
Battery capacity; 40–400Ah, lead-acid battery types. 30–450Ah, LiFePO4
Battery capacity (maintenance); 500Ah
Charge cables length; 2000 mm (DC cable)
Mains cable length; 1900 mm (AC cable)
Net weight (unit with cables); 1.8 kg
Gross weight (unit in box); 2.2 kg
Insulation class; IP44 (outdoor use)
Ripple**; Less than 4%
Model Number; 40-200
